Sliding Window

A unique combination of form and function not previously available in the residential category, the Carinya Sliding Window is complemented by superb engineering. A proprietary adjustable, non-corrosive roller system provides an effortless gliding motion that makes the window a joy to operate.

Introduction

The Classic Sliding Window is a residential product from Carinya which has been designed to deliver an easy-to-use and high performance system ideal for new buildings or renovations.

The clean lines and innovative design features set the Classic Sliding Window apart as a superior product in the residential market.

  • Easily configured into any combination of fixed and sliding panels.
  • Smooth gliding operation due to the commercial quality proprietary roller componentry.
  • Enhanced security provided by an anti-lift block which prevents interference.
  • Mullion-positioned handle which facilitates easier access and use.
  • Covered drain slots and built in weather flaps which minimise infiltration of air, water and insects.
  • End caps on mullions and transoms to further prevent insect penetration.
  • The Classic Sliding Window meets or exceeds testing requirements of Australian Standards AS1170, AS2047, AS3959 and AS1191.

Hardware

The Carinya Classic Sliding Window has been designed with matching stylish hardware, with the option for a lockable or non-lockable proprietary handle.

The slim line design, mounted in an easily accessible position on the rear of the sliding sash, offers ease of use and minimises view obstruction.

To maximise the performance and life of your window we have utilised our proprietary commercial rollers that have been tried and proven in commercial applications such as schools and offices. This ensures that your windows will always be easy to open even with large sashes and heavier glass options.

All Carinya Sliding Window sashes feature corner blocks in all four corners of the sliding sash. These blocks make the sash more rigid, reducing twisting and movement. This reduction in movement increases the performance of the window by reducing opportunities for air and water infiltration.

An optional vent lock is also available allowing the sliding sash to be secured in a semi-opened position for partial ventilation, child safety and security.

Screening

Carinya is created by Alspec - Australia’s No.1 aluminium system supplier and we also offer an extensive range of window screening and home improvement products for your home. In addition to standard fibreglass and aluminium insect screening, Dynamic Windows can also offer the latest technology in high visibility screening using BetterVue® and UltraVue® screening to maximise your view.

Insect Screening

Carinya products have been designed to accept screening products without the need for unsightly adaptors or added material. Door and window screening provides protection from insects and other unwanted 'guests' to your home, whilst minimising the impact on your view.

Invisi-Gard Stainless Steel Security Screening

Fixed window security screens are becoming more of a requirement for the conscious home owner and Invisi-Gard is your ideal match for durability, protection and performance.

KidScreen Window Fall Prevention

A unique patent design, cost effective barrier solution designed specifically for child protection of openable windows, KidScreen were recently presented with a highly commended Award from the "Australian Windows Association Most Innovative Window Component 2013".

Specifications

  • Maximum Sash Height: 1500mm
  • Maximum Sash Width: 1200mm
  • Maximum Glass Thickness:10.5mm or 18mm IGU
  • Maximum Sash Weight: 40kg
  • Frame width available in 50mm & 92mm

Application

  • New residential construction
  • Window replacement and renovation
  • Low-rise building

Options

  • A range of sill options are available for applications requiring increased weather performance.
  • A range of mullions and transoms complete with end caps for a quality finish.
  • Choice of screening options BetterVue® and UltraVue® for superior mesh solutions.
  • A ventlock that allows the window to be secured in a partially opened position to allow ventilation whilst still being secure.

Configurations

Dynamic Windows can offer the typical standard configurations below, as well as custom options to suit your requirements.

Colour Options

Depending on the look require, you have many colour options for your Carinya Windows and Doors. Dynamic Windows can help you through this process of selecting a perfect match to your project.

Carinya Windows and Doors can be finished by one of two options for aluminium:

Powder Coating
  • A tough and durable option allowing for a wide range of colours.
  • A choice or world leading suppliers of powder finishes;
  • Finishing is provided by supplier accredited Alspec branches, as well as selected quality contractors.
  • Warranties are available. Depending on your finish option, you will receive a warranty ranging from 7 years (film and colour integrity) to 15 years (film and colour integrity).
Anodising

You may prefer a choice of anodizing, an electro-chemical treatment available in standard finishes, natural anodized and non standard, bronze and black.

Energy Efficiency

Now you can install green, green glass at home - with designer style!

The Carinya Collection of aluminium framed windows and doors has been specifically designed to be environmentally friendly, reflecting Carinya's commercial market heritage, where thermal and acoustic performance are often critical.

Of all building materials including glass, timber and masonry only one material is 100% recyclable - Aluminium.

Windows are vital to the energy efficiency of any home. Research by the Sustainable Windows Alliance of Australia shows the typical Australian home can achieve an increase of 2 to 2.5 stars energy efficiency simply by upgrading the windows.

Unlike many aluminium windows, Carinya has been designed for all major forms of eco-friendly glazing options without any alteration to the frame or any unsightly add-ons.

Carinya frames are designed for eco-friendly Low E glass, high thermal and high acoustic performance 10.5mm glazing.

Remember the three most important issues for achieving maximum energy efficiency in a home are:

  • Orientation - always try and have living areas facing north with seasonal shading.
  • Insulation.
  • Window quality and performance.

WERS Energy Ratings

The Housing Industry Association of Australia (HIA) strongly suggests you ensure the energy rating on your windows is WERS rated to be confident of its true performance. Carinya gives you that confidence as the entire Carinya Collection has been WERS rated for performance.

WERS stands for the Window Energy Rating Scheme that is managed by the Australian Window Association. WERS enables windows to be rated and labelled for their annual energy impact on a whole house, in any climate of Australia. WERS acts as a fair, rigorous and credible system for testing energy performance claims. It is about certified performance.

Energy rating for windows is here to stay as part of the federal government’s commitment to improving energy efficiency and reducing greenhouse gas emissions.

The flexible glazing options available in The Carinya Collection means that our windows and doors compare favourably in WERS performance and the resale value and comfort of your home are improved by the use of the high performance Carinya windows and doors.

View the WERS RATING results here »

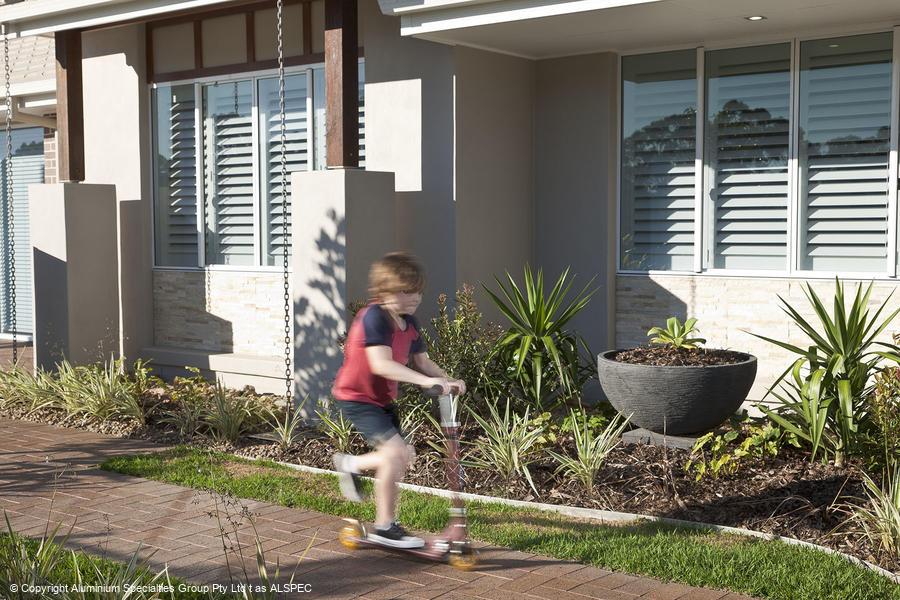

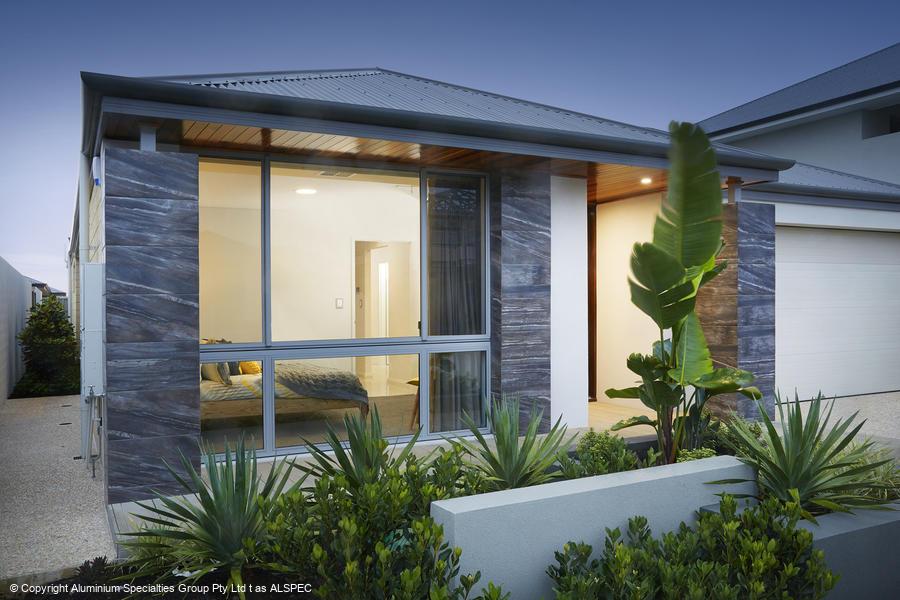

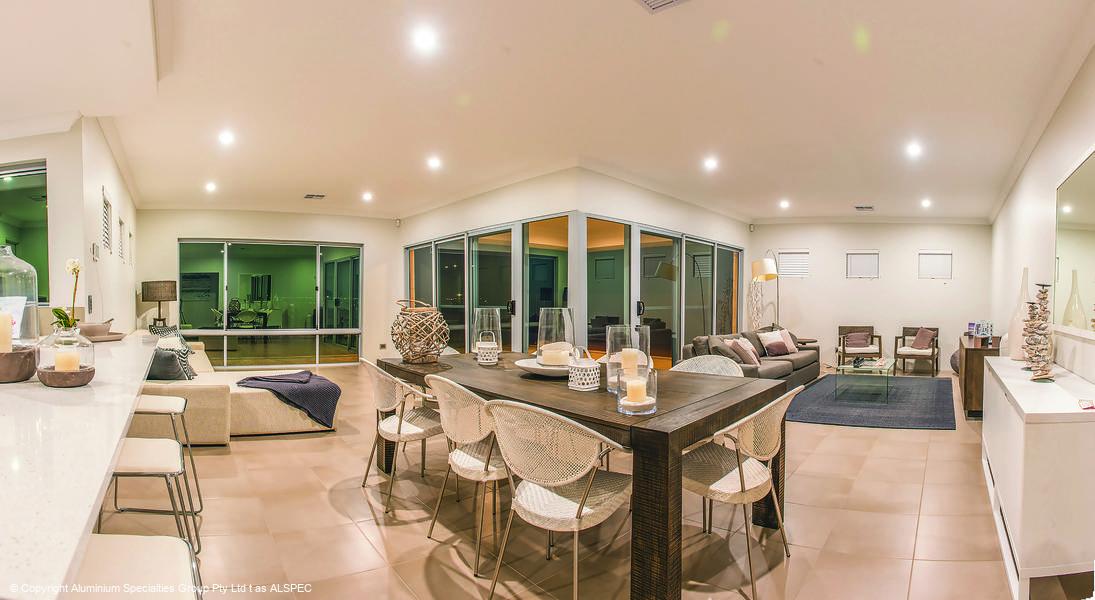

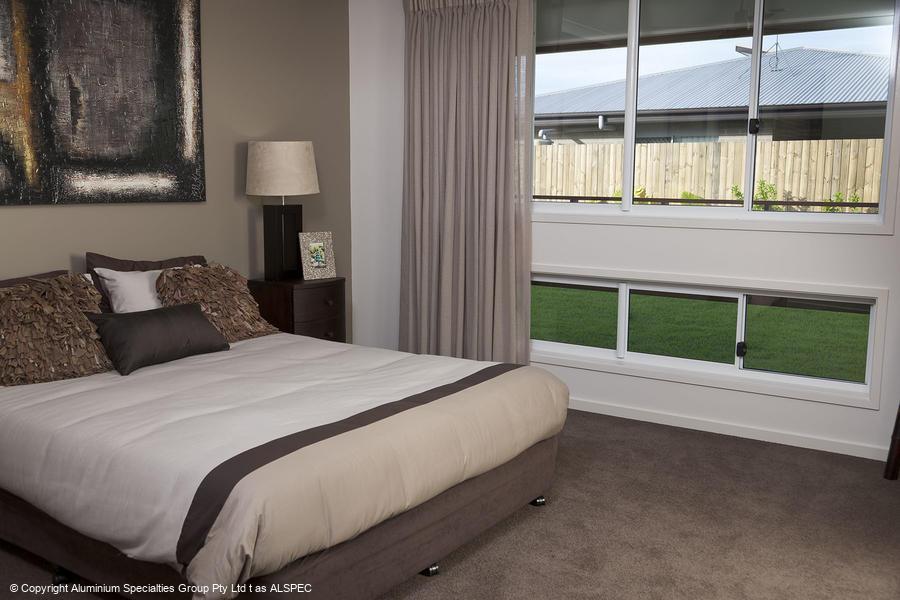

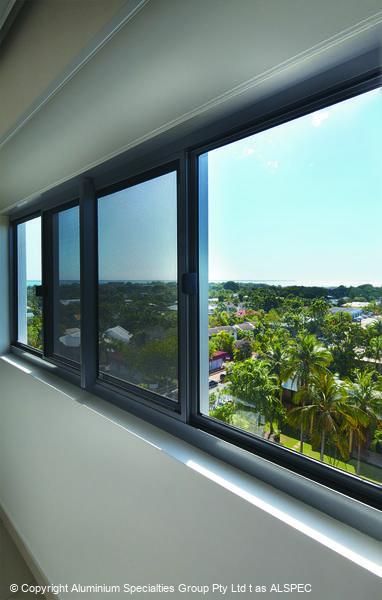

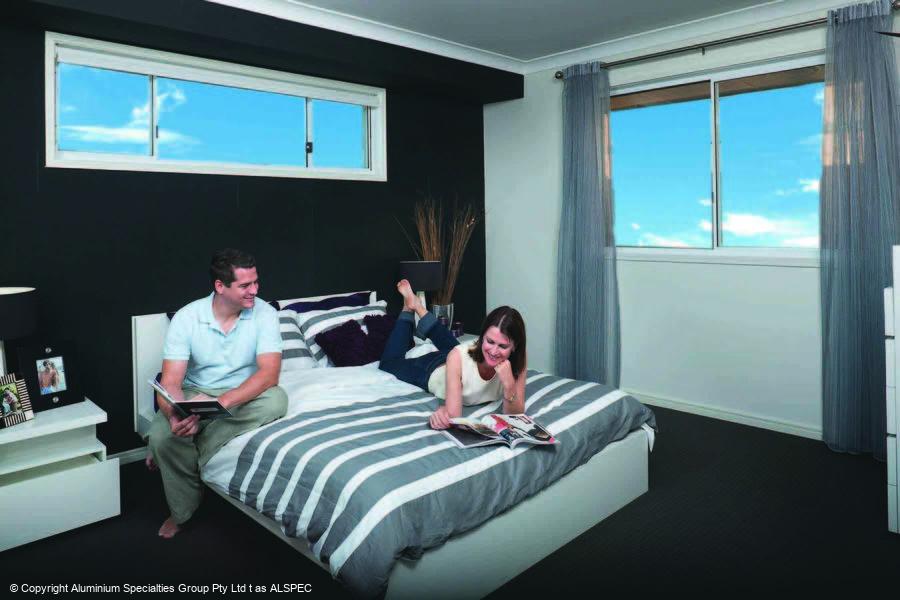

Gallery

  • Quality! Quality! Quality! Quality not only in product but in attention to detail, client service, product support, Industry confidence, Onsite service & support through to Friendly deliveries with a can do attitude all at competitive pricing!
  • Dynamic Windows has delivered on quality and workmanship and has demonstrated an eye for detail which has ensured an excellent finish. I have no hesitation in recommending Dynamic Windows and in working with them in the future.
